The TCA Cycle

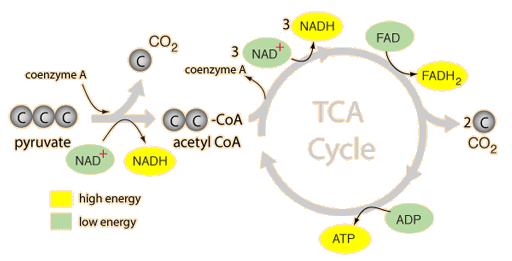

The tricarboxylic acid cycle (TCA cycle) is a series of enzyme-catalyzed chemical reactions that form a key part of aerobic respiration in cells. This cycle is also called the Krebs cycle and the citric acid cycle. The greatly simplified cycle below starts with pyruvate, which is the end product of glycolysis, the first step of all types of cell respiration.

This is an active graphic.
TCA cycle connections to other parts of metabolism

Since it is well known that ATP is the energy currency that is used for nearly every task in the human body and other organisms, it may seem surprising that so little ATP is produced directly by the TCA cycle. But the TCA cycle as shown here represents the process taking place in the matrix of the mitochondria using the reactions with NAD+ and FAD which carry high energy electrons to the electron transport systems in the inner mitochondrial membrane. The reactions there are responsible for the production of most of the ATP yield by chemiosmosis.

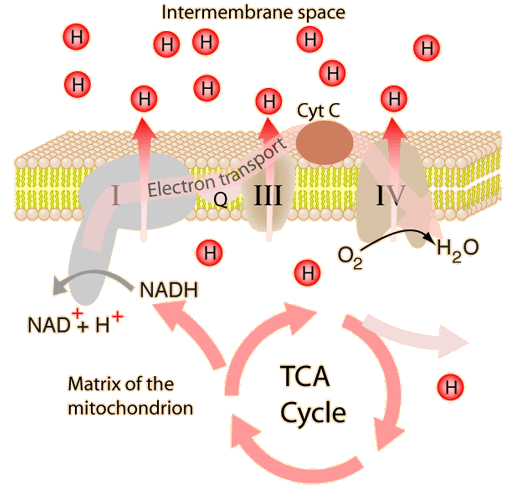

This shows the TCA cycle in the context of what is happening in the inner mitochondrial membrane. It's role can be seen as giving energy to the reduced coenzyme NADH which then powers the electron transport process in the membrane. The energy is used by the protein complexes to produce a proton gradient which in turn powers ATP synthase in its role of producing the needed ATP.

Add compound names to TCA cycle
Cellular Respiration
Index

Reference
Audesirk & Audesirk
Ch 8

Citric acid cycle wiki

HyperPhysics***** Biology R Nave
Go Back





The TCA Cycle

The tricarboxylic acid cycle (TCA cycle) is a series of enzyme-catalyzed chemical reactions that form a key part of aerobic respiration in cells. This cycle is also called the Krebs cycle and the citric acid cycle. The outline below is typical of the metabolism of carbohydrates, which proceeds through glycolysis to form pyruvate and then through acetyl CoA to enter the TCA cycle. The TCA cycle has connections to other parts of metabolism, and other molecules may enter it at different places.
