Heat Transfer

The transfer of heat is normally from a high temperature object to a lower temperature object. Heat transfer changes the internal energy of both systems involved according to the First Law of Thermodynamics.


Index

HyperPhysics***** Thermodynamics R Nave
Go Back





Heat Conduction

Conduction is heat transfer by means of molecular agitation within a material without any motion of the material as a whole. If one end of a metal rod is at a higher temperature, then energy will be transferred down the rod toward the colder end because the higher speed particles will collide with the slower ones with a net transfer of energy to the slower ones. For heat transfer between two plane surfaces, such as heat loss through the wall of a house, the rate of conduction heat transfer is:

Calculation


= heat transferred in time =
= thermal conductivity of the barrier
area
= temperature
= thickness of barrier
Thermal conductivity table
Discussion of thermal conductivity
Home heat loss by conduction.
Index

Heat transfer concepts

Heat transfer examples

HyperPhysics***** Thermodynamics R Nave
Go Back





Heat Convection

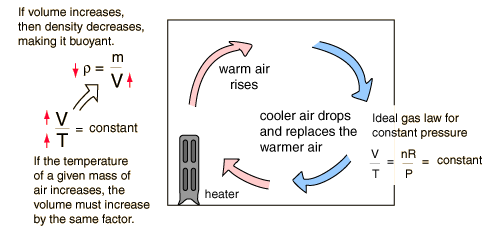

Convection is heat transfer by mass motion of a fluid such as air or water when the heated fluid is caused to move away from the source of heat, carrying energy with it. Convection above a hot surface occurs because hot air expands, becomes less dense, and rises (see Ideal Gas Law). Hot water is likewise less dense than cold water and rises, causing convection currents which transport energy.

Convection can also lead to circulation in a liquid, as in the heating of a pot of water over a flame. Heated water expands and becomes more buoyant. Cooler, more dense water near the surface descends and patterns of circulation can be formed, though they will not be as regular as suggested in the drawing.

Convection cells are visible in the heated cooking oil in the pot at left. Heating the oil produces changes in the index of refraction of the oil, making the cell boundaries visible. Circulation patterns form, and presumably the wall-like structures visible are the boundaries between the circulation patterns.

Convection is thought to play a major role in transporting energy from the center of the Sun to the surface, and in movements of the hot magma beneath the surface of the earth. The visible surface of the Sun (the photosphere) has a granular appearance with a typical dimension of a granule being 1000 kilometers. The image at right is from the NASA Solar Physics website and is credited to G. Scharmer and the Swedish Vacuum Solar Telescope. The granules are described as convection cells which transport heat from the interior of the Sun to the surface.

In ordinary heat transfer on the Earth, it is difficult to quantify the effects of convection since it inherently depends upon small nonuniformities in an otherwise fairly homogeneous medium. In modeling things like the cooling of the human body, we usually just lump it in with conduction.
