Work and Voltage: Constant Electric Field
The electric field is by definition the force per unit charge, so that multiplying the field times the plate separation gives the work per unit charge, which is by definition the change in voltage. This association is the reminder of many oftenused relationships:

Index Voltage concepts Electric field concepts

Go Back
Voltage Difference and Electric FieldThe change in voltage is defined as the work done per unit charge against the electric field. In the case of constant electric field when the movement is directly against the field, this can be written If the distance moved, d, is not in the direction of the electric field, the work expression involves the scalar product: In the more general case where the electric field and angle can be changing, the expression must be generalized to a line integral:

Index Electric field concepts Voltage concepts

Go Back

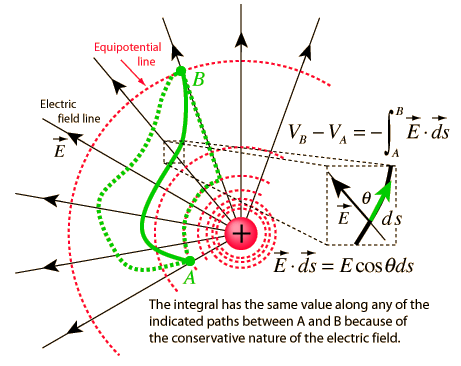

Voltage from Electric FieldThe change in voltage is defined as the work done per unit charge, so it can be in general calculated from the electric field by calculating the work done against the electric field. The work per unit charge done by the electric field along an infinitesmal path length ds is given by the scalar product
Then the work done against the field per unit charge in moving from A to B is given by the line integral:
