Bar Vibrational Modes The elastic property involved in the vibration of bars is usually stated in terms of Young's modulus.
|
Index Percussion instruments Musical instruments Reference Hall Ch. 9 | ||
|
Go Back |
Clamped Bar ModesThe frequency f1 depends upon the density and elasticity of the material from which the bars are made. The amplitudes for the f2 and f3 modes would actually be much smaller than the fundamental. These mode frequencies appear with a tuning fork since it can be considered to be two clamped bars.
|
Index Percussion instruments Musical instruments Reference Hutchins | ||
|
Go Back |

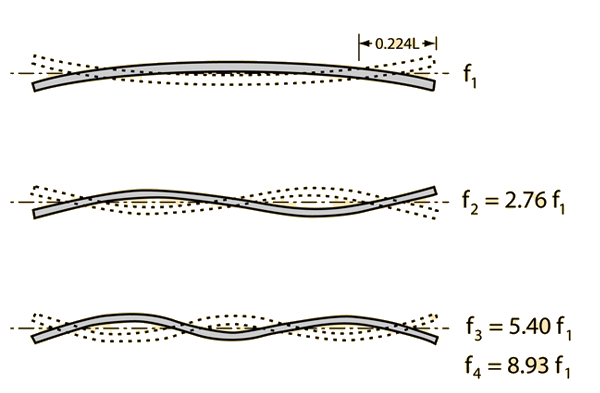

Free Bar ModesThe frequency f1 depends upon the density and elasticity of the material from which the bars are made. The amplitudes for the f2 and f3 modes would actually be much smaller than the fundamental.
|
Index Percussion instruments Musical instruments | |||
|
Go Back |
