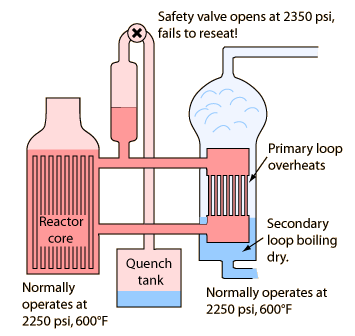

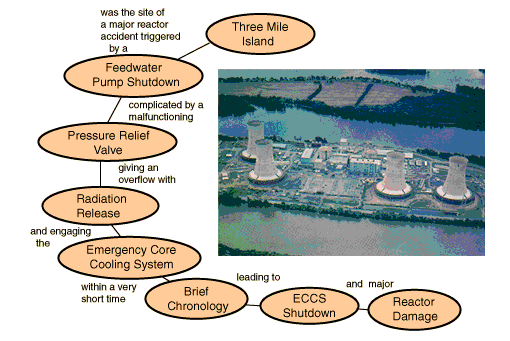

Misleading behavior of a safety valve quickly compounds the problem.

1. Secondary loop boils down to a low level, superheating the primary loop.

2. Pressure rises above 2350 psi, opening safety valve to quench tank. Radioactive steam and water move to quench tank.

3. Valve tries to close when pressure drops below 2300 psi, but doesn't seat. However, it closes enough to trip the indicator in the control room, so operators think it is closed.

Index

Three Mile Island concepts

Nuclear energy concepts

Fission concepts

HyperPhysics***** Nuclear R Nave
Go Back

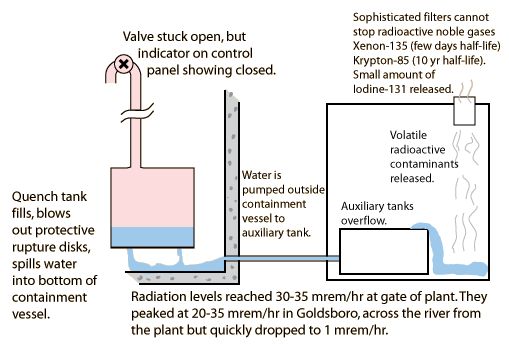

The stuck relief valve leads to some radiation release

Iodine-131What is a mrem?
Index

Three Mile Island concepts

Nuclear energy concepts

Fission concepts

HyperPhysics***** Nuclear R Nave
Go Back





Meanwhile, back at the reactor ...

- With the cooling effect of the restored feedwater and the stuck relief valve, the reactor pressure drops quickly.

- At 1600 psi the Emergency Core Cooling System kicks in automatically, flooding the core with high pressure water.

- Even though the reactor has "scrammed" and the control rods have stopped the fission chain reaction, the residual reactions still produce 5-7% of full heating power. For an 800 MW electrical, 2400 MW thermal reactor, this amounts to 120-170 Megawatts of heating power.

Index

Three Mile Island concepts

Nuclear energy concepts

Fission concepts

HyperPhysics***** Nuclear R Nave
Go Back





Three Mile Island: A Brief Chronology

Time Event

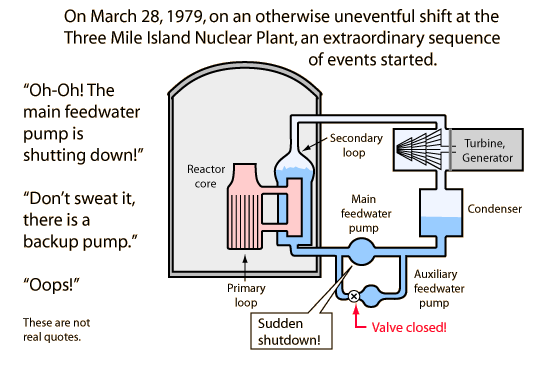

0Condensate pump shuts down due to improperly closed valve in demineralizer.
2 secTurbine automatically switches off. Pressure rises to 2255 psi, opens relief valve. It fails to close.
8 secSensing high pressure, reactor "scrams", dropping all control rods.
9 secFission reaction stops. (Fission products still produce heat.)
14 sOperator notes that emergency feedwater pumps are on.
1:45Steam generator (secondary loop) boils dry.
2 minEmergency core cooling system (ECCS) automatically turns on when pressure drops below 1600 psi.
2.5 minOperators shut down the ECCS!!
By this time the operators were dealing with about 100 alarms!!
Index

Three Mile Island concepts

Nuclear energy concepts

Fission concepts

HyperPhysics***** Nuclear R Nave
Go Back





The ECCS was shut off!!

- The operators were afraid that the water level would get too high, that the reactor would "go solid". If the water filled the reactor, it would act like a hydraulic press and force the reactor lid off.

- After over an hour of heating, the coolant pumps were shut off, worsening the already bad situation.

- Two-thirds or more of the 12 foot core was uncovered. At 150 MW of heating it would take only 30 seconds for fuel melting to start if all cooling was lost.

- A large hydrogen "bubble" was formed at the top of the reactor by reaction between the zirconium fuel rod cladding and the superheated water.

The core was recovered with water after about 6.5 hours of exposure!!

Though now largely forgotten, there were national headlines for about a week concerning the large hydrogen bubble that had formed at the top of the reactor vessel. In retrospect, since the bubble formed by the interaction with the hot zircalloy tubes and the steam there was no significant risk of the hydrogen exploding in the reactor vessel itself because there was no available oxygen. The formation of the hydrogen bubble occured because the superheated zircalloy stripped oxygen away from the steam, creating the hydrogen bubble. With the zircalloy that hungry for oxygen, there wasn't going to be enough available to explode the hydrogen bubble.

Index

Three Mile Island concepts

Nuclear energy concepts

Fission concepts

HyperPhysics***** Nuclear R Nave
Go Back





Three Mile Island Reactor Damage

The financial cost of the Three Mile Island nuclear accident was on the order of a billion dollars. The entire fuel assembly in the reactor was damaged by the heat and the reaction of the hot steam with the zircalloy tubing which contained the fuel pellets.
